RCAM2.0

CNC TO ROBOT TRANSLATOR

STEPS TO PRODUCE ROBOT PROGRAMS FROM CNC PROGRAMS


1. Configure the software

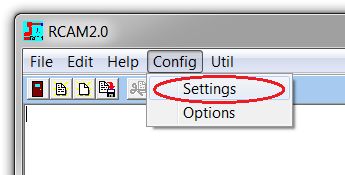

Go to the Config Menu and select the option Settings.

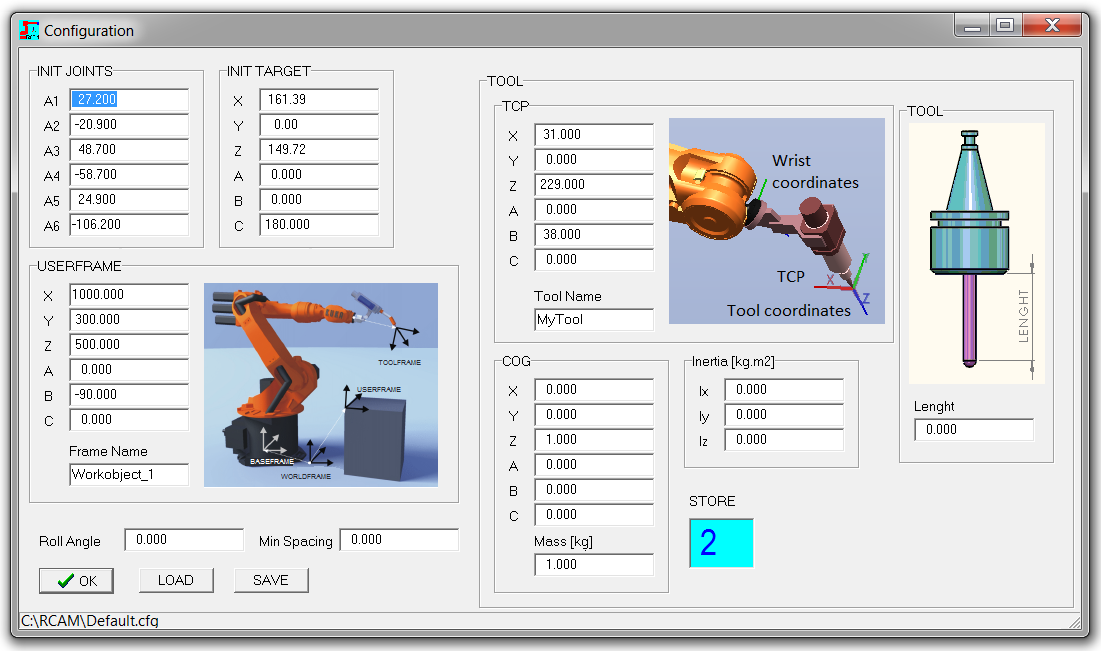

INI JOINTS - initial motion in axis coordinates (A1,A2,A3,A4,A5,A6)

INI TARGET - initial motion in cartesian coordinates (X,Y,Z,A,B,C). Note: This target is defined in the user coordinates

the orientation of this target will be used in all of the translated code in 3axis and 4axis CNC systems



TOOL

Tool Name - selection of tool - >toolname

TCP - values of X,Y,Z,A,B,C for the tool center point

COG - values for center of mass and orientation of the principal inertia moments

Mass - value for the tool mass [Kg]

Inercia - Inercia of the tool about principal axis [Kg.m2]

Lenght - flute lenght compensation



USERFRAME (Workobj)

values for X,Y,Z,A,B,C of the user frame

Frame Name - selection of user coordinate syste->framename (Workobj)

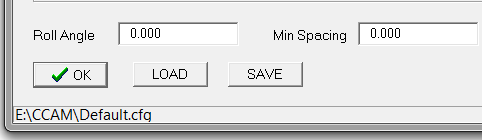

Roll Angle - angle to rotate wrist around spindle axis default is 0.0 ->roll angle value

MIin Spacing - minimum space between robot targets. Used to reduce the size· of the robot program (mesh of points) ->value



SAVE- saves current configuration [.CFG]

LOAD - load existing configuration [.CFG]

When the program starts the default.cfg file is loaded.



STORE- Store number for automatic tool loading

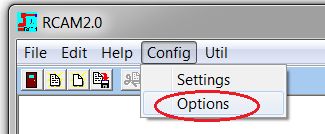

Next go to the Config Menu and select the Options available.

ROBOT

ABB - ABB robots S4, IRC5

KUKA robots KRL, KRC1



MACHINING

XYZ - 3 axis machining

XYZA - (rotating table)

XYZAB - 5 axis machining

XYZBC - 5 axis machining



SOURCE

Type of CNC program

APT

GCODE- example: uses Vectrix Cut3D - Vision Gcode mm



EXTAXIS1 TRACK - check box - activates track

TRACKNAME- >trackname

TRACKOFFSET ->value- compensates robot X coordinate for large parts E1..E6 check-> mapping for extaxis1



EXTAXIS2 TABLE - check box - activates table

TABLENAME ->tablename

E1..E6 check-> mapping for extaxis2



SPLIT FILES

Split - check box - activate split output in several files

Max Moves in file - > value - Number of motions in each file



TARGETS

Create - check box - allow the creation of targets



AXIS MAPPING - Inputs also the scale factor (encoder) for the axis. (negative to invert axis)

SCALE PROG - Inputs the scale factor to scale the part forom the CNC Code

SPEED OV - Adjust the machining Feed to speed up testing or fine tune the cutting.

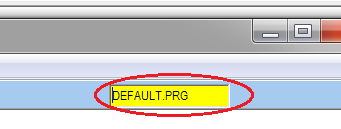

2. Next fill the desired output file Name in the yellow box

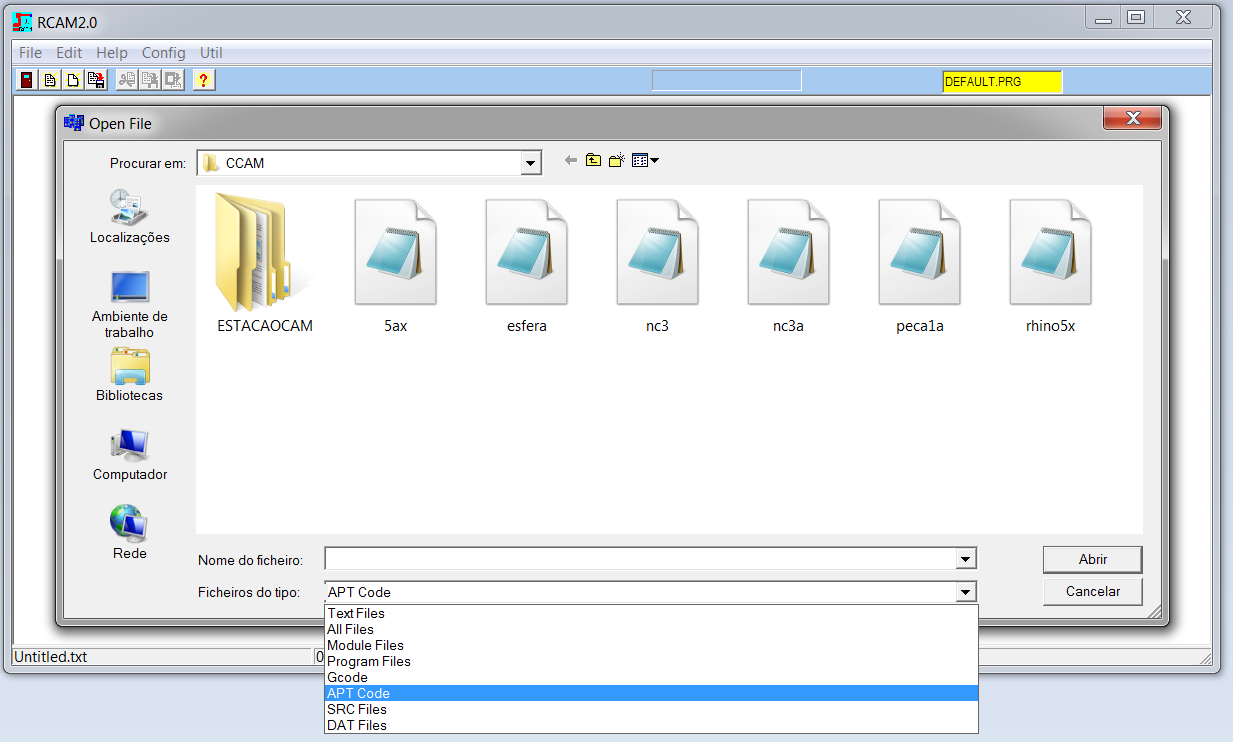

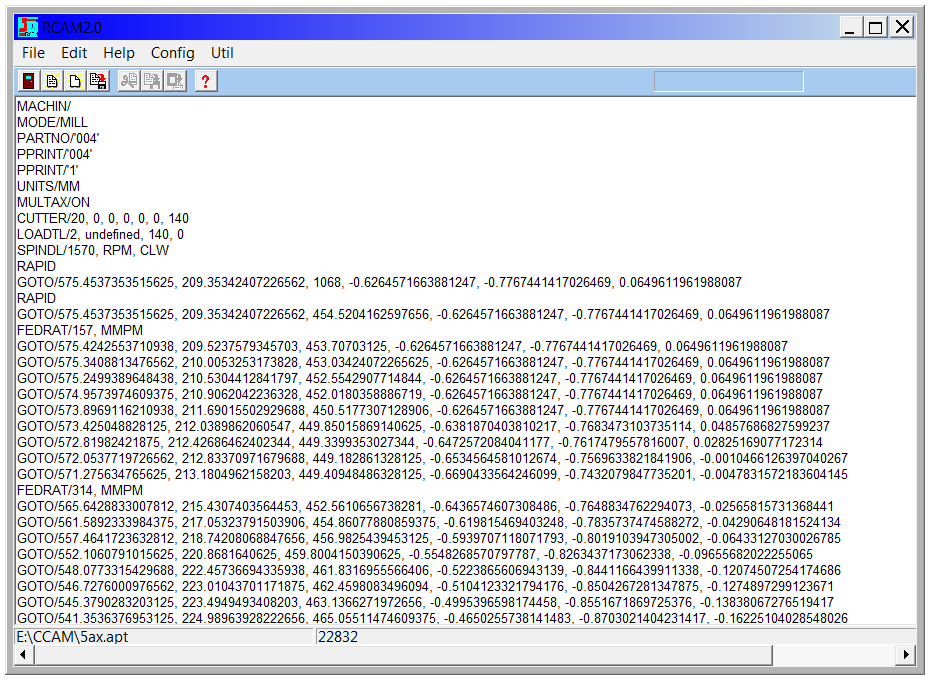

3. Open the file you want to convert



There are several filters you can use to open the correct file in this case will will open an APT file

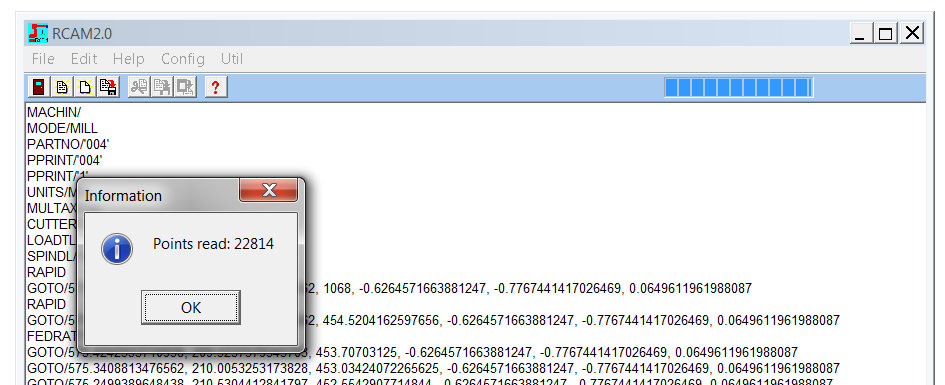

4. Next press Translate CNC in the FILE Menu



you will get information of the translation progress and at end the number of points converted

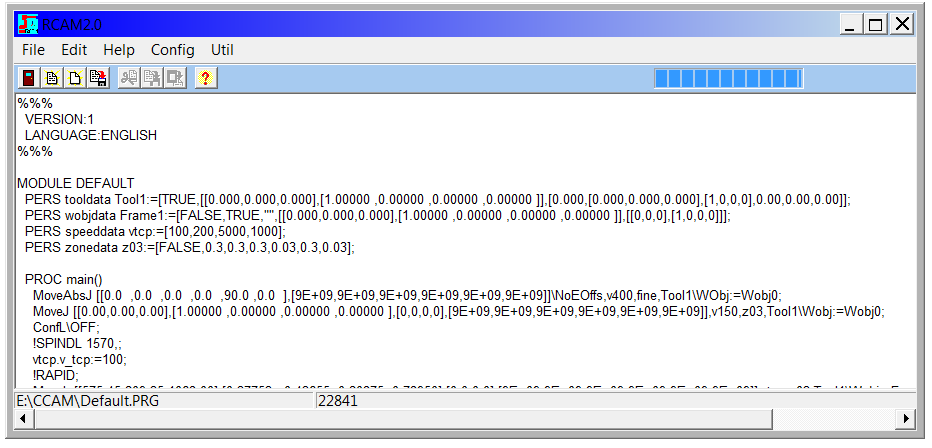

5. Finaly open the translated file to see or edit the code



that's it!
