RCAM2.2 new feature

Conversion from Prusa Gcode to ABB robot with external axis motor

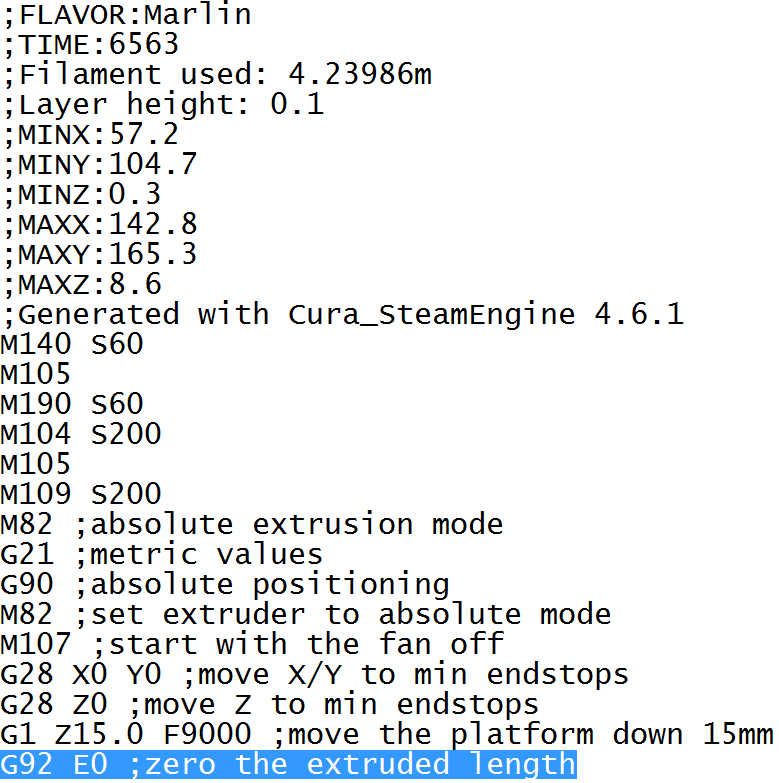

In this example the machining Gcode was obtained with CURA Ultimaker *. The extruder E (the lenght of extruded filament) parameter was converted to an independent external axis (extrusion motor). This is necessary to reset the value of the axis (resolver) whenever necessary

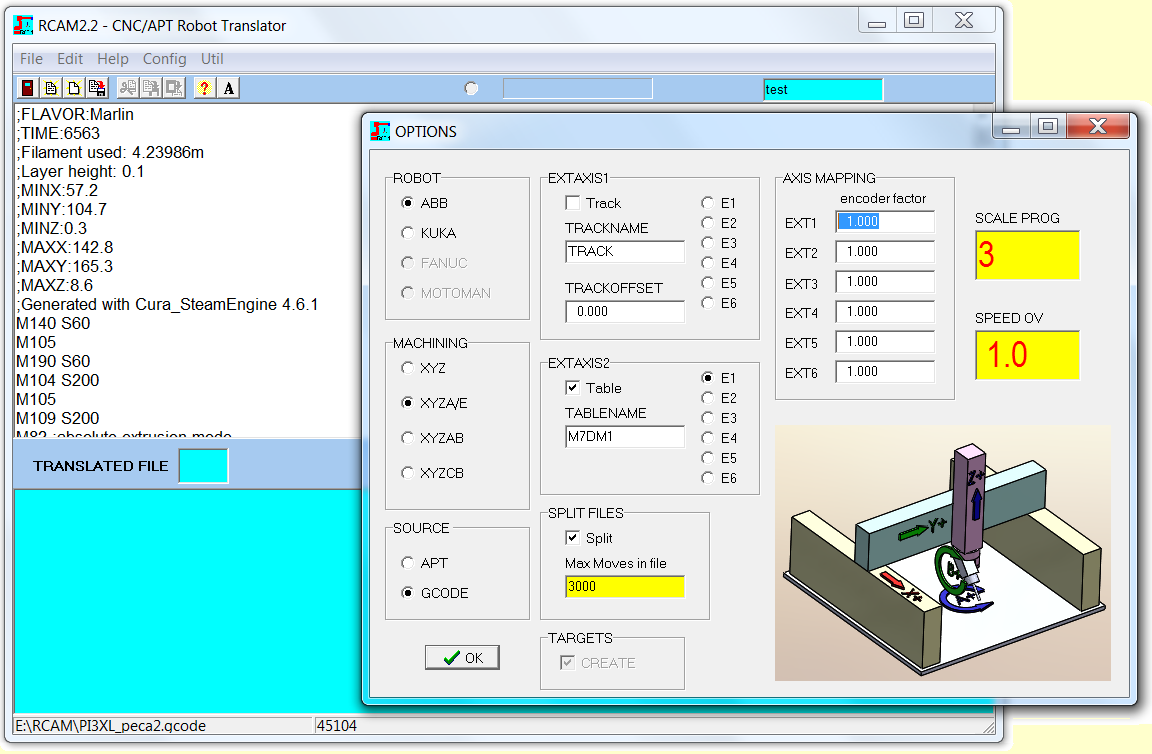

Mapping the axis of the extruder and scaling of part. Adjust of the speed and calibration of the extruded lenght cand also be set by means of speed override and encoder factor

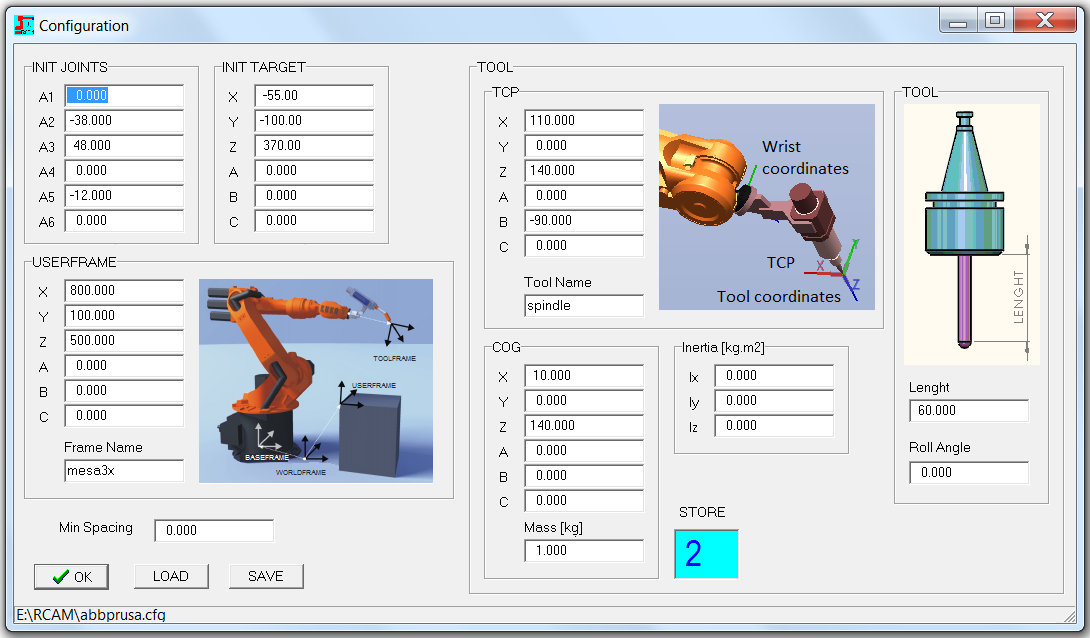

Setting an initial axis position and initial position from data colected on the robot

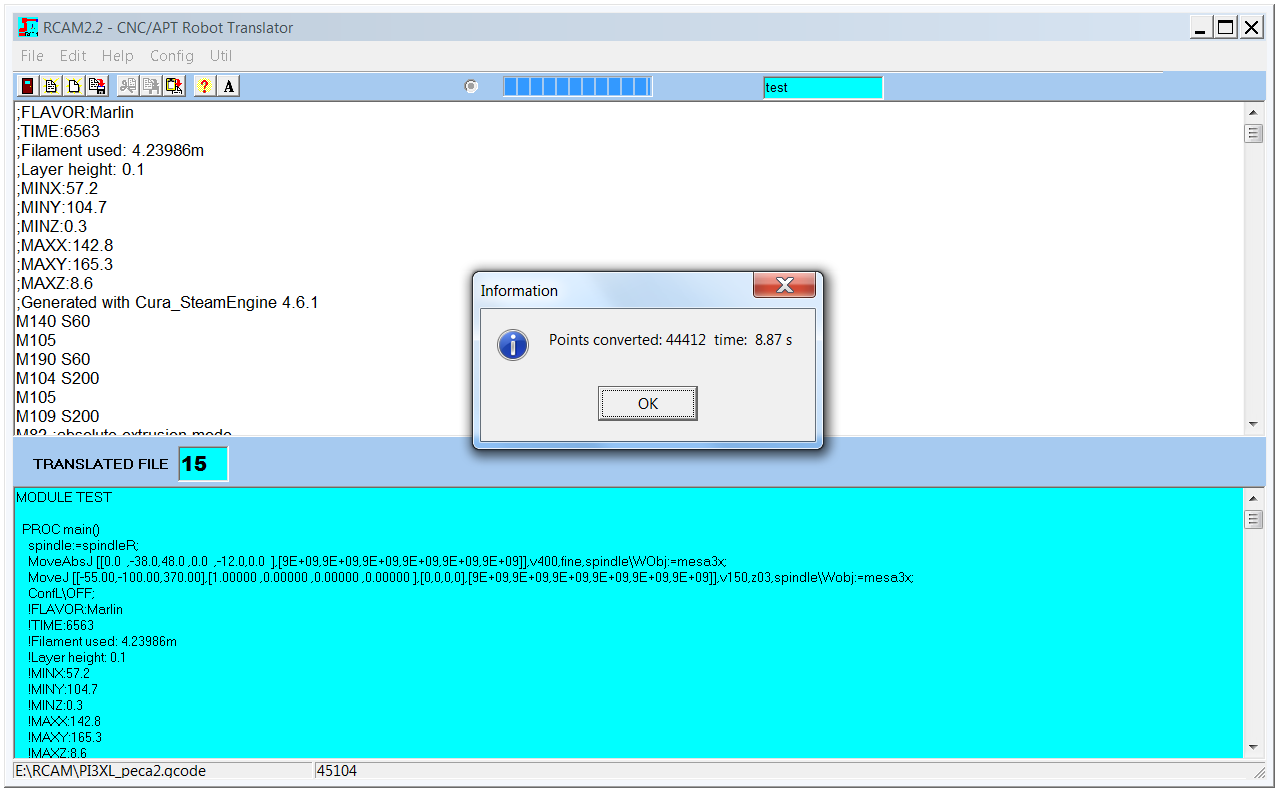

 Getting the translated files (splitted) ready to be downloaded to the robot dynamically.

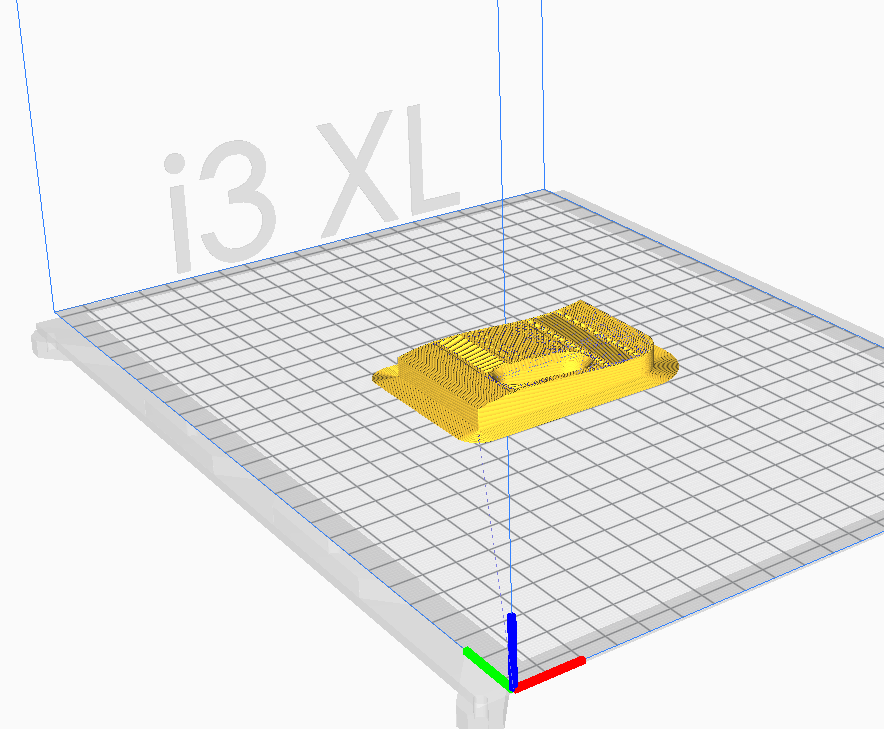

Simulation of the printing 3d program of the part (Scaled)

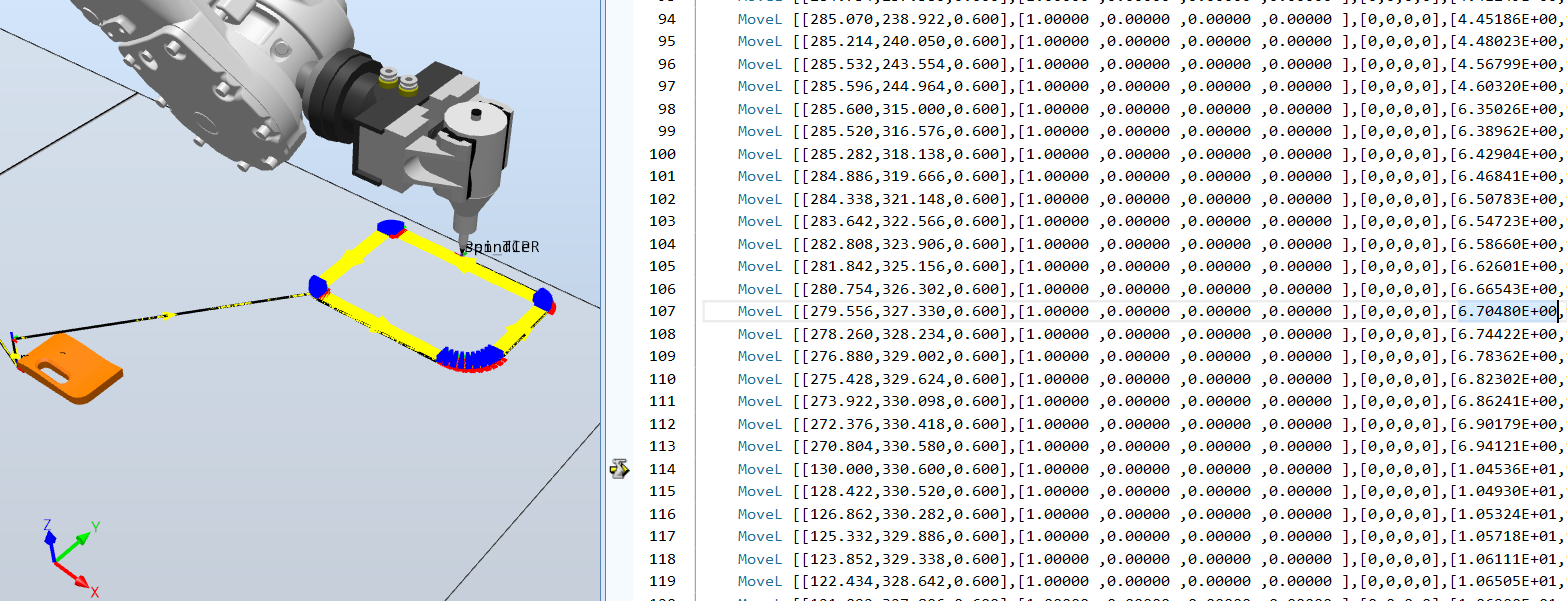

Robotstudio Simulation





* Ultimaker Cura is a registrated trademark of Ultimaker BV

Robotstudio is a trademark of ABB
