RCAM2.0

5 AXIS MACHINING OF PARTS


with MASTERCAM 9.1*

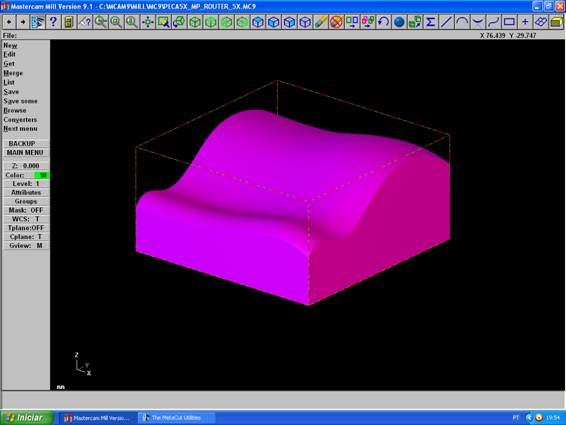

1- During design phase orientate the part with Z perpendicular to the working plane

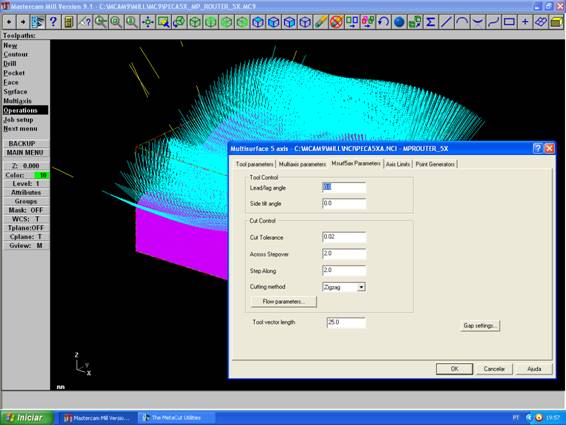

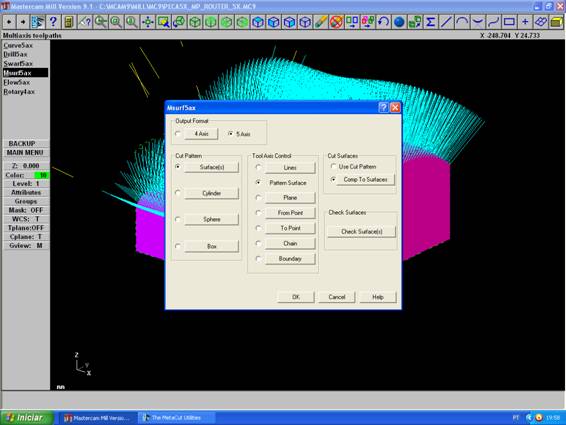

2- Chose option MSurf5ax

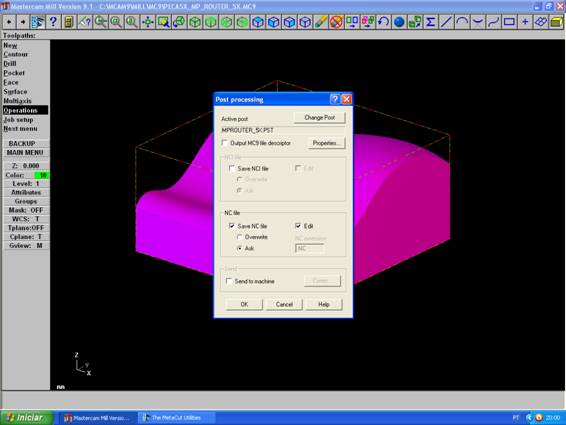

3- Choose POST MPROUTER_5X.PST (No router)

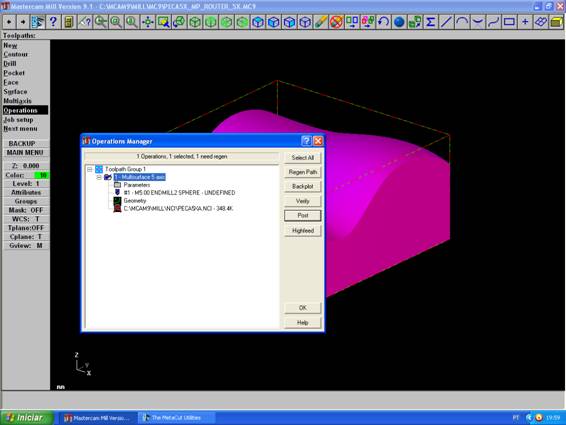

4- Generate the POST

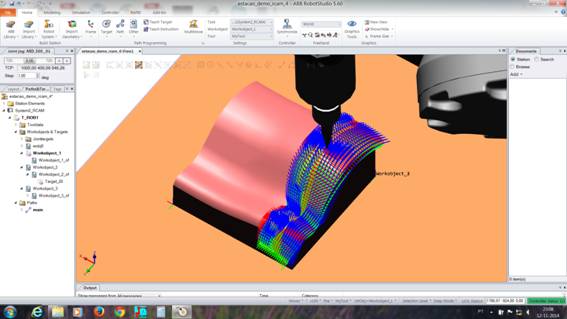

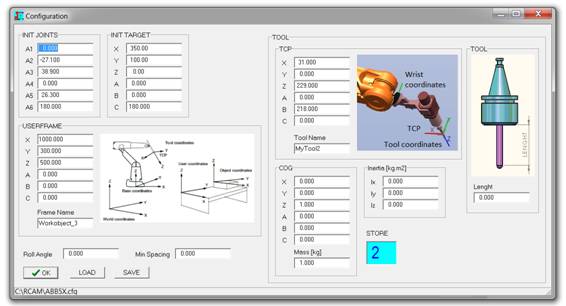

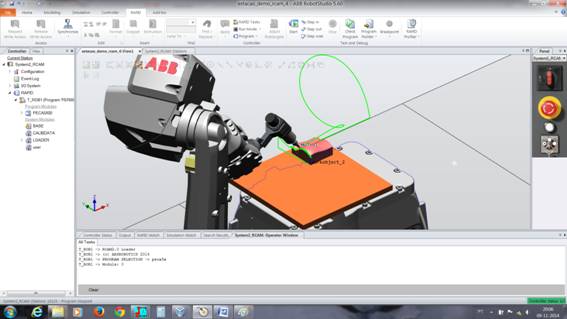

In RCAM the WorkObj must be oriented with Z according to BaseFrame.

The Tool must have inverted Z (pointing inside the mill tool)

MODULE CALIBDATA(SYSMODULE)

  !Maquinacao a 5X

  !Ferramenta rodada 180 em Z (218) graus

  PERS tooldata MyTool2:=[TRUE,[[31.000,0.000,229.000],[0.32557 ,0.00000 ,-0.94552,0.00000 ]],[1.000,[0.000,0.000,1.000],[1,0,0,0],0.00,0.00,0.00]];

  !Z orientado como em World

  PERS wobjdata Workobject_3:=[FALSE,TRUE,"",[[1000.000,300.000,500.000],[1 ,0.00000 ,0,0.00000 ]],[[0,0,0],[1,0,0,0]]];

  PERS speeddata vtcp:=[8.143,200,5000,1000];

  PERS zonedata z03:=[FALSE,0.3,0.3,0.3,0.03,0.3,0.03];

ENDMODULE





*Mastercam is a registered trademark of CNC Software, Inc.
