RCAM2.0
3 AXIS MACHINING OF PARTS
in this example the machining Gcode was prepared using Mastercam *

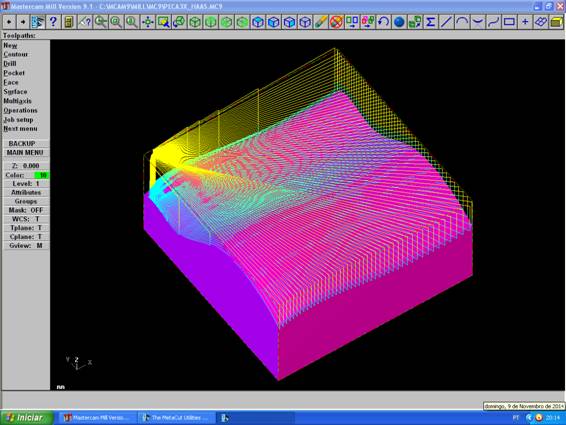

1- Orientaqte the part during design phase with Z perpendicular to the working plane

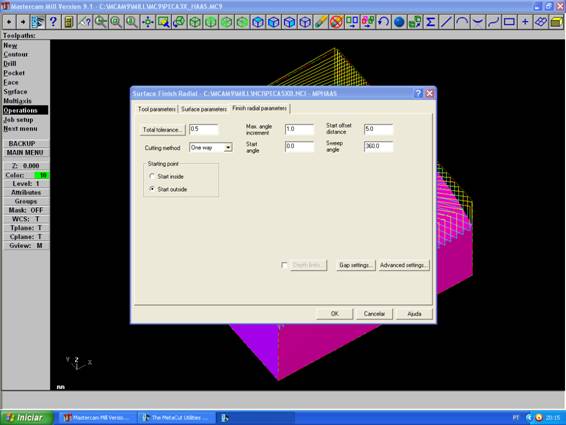

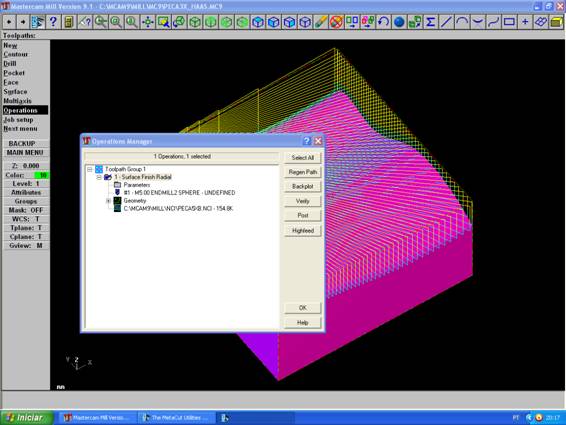

2- Choose the option Finish for instance
3- Choose POST MPHAAS.PST

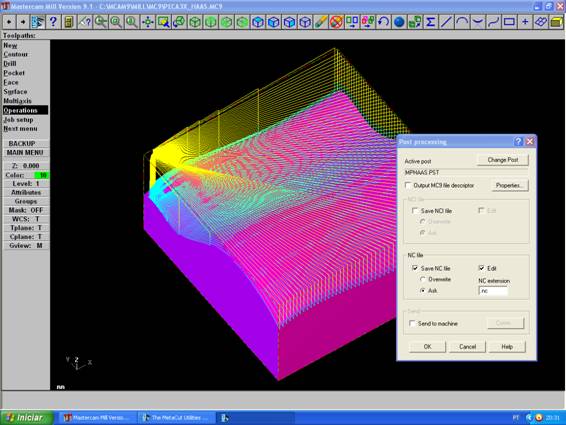

4- Generate POST

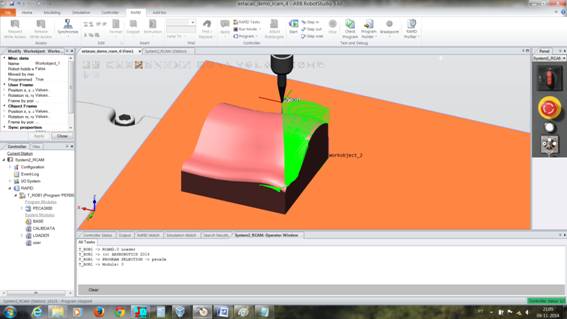

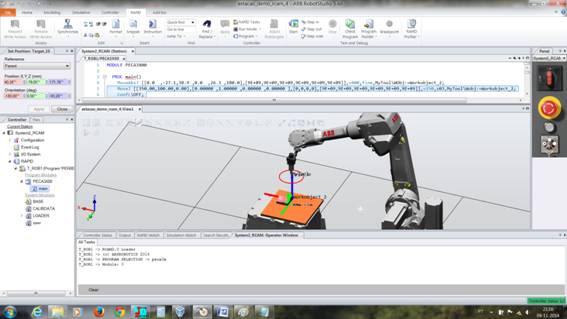

In RCAM the WorkObj must be oriented with Z pointing above as the BaseFrame.

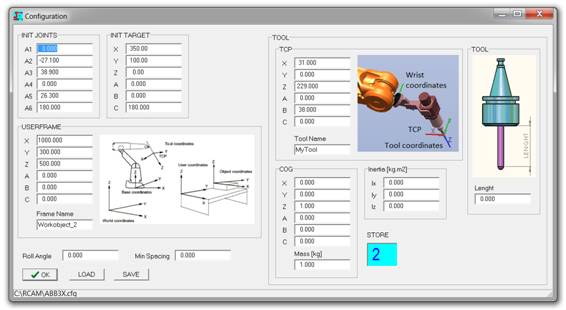

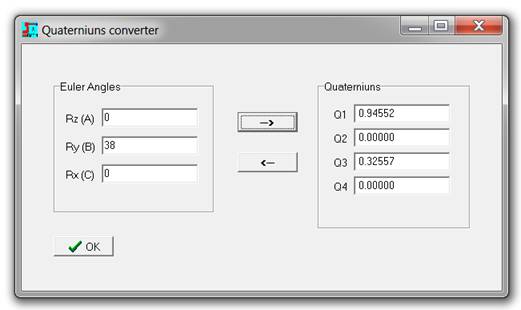

The Tool is the original rotated 38°
find a suitable starting point to the program
MODULE CALIBDATA(SYSMODULE)
!Ferramenta a 38 graus
PERS tooldata MyTool:=[TRUE,[[31.000,0.000,229.000],[0.94552 ,0.00000 ,0.32557 ,0.00000 ]],[1.000,[0.000,0.000,1.000],[1,0,0,0],0.00,0.00,0.00]];
!paralelo a WORLD
PERS wobjdata Workobject_2:=[FALSE,TRUE,"",[[1000.000,300.000,500.000],[1 ,0.00000 ,0,0.00000 ]],[[0,0,0],[1,0,0,0]]];
PERS speeddata vtcp:=[4.072,200,5000,1000];
PERS zonedata z03:=[FALSE,0.3,0.3,0.3,0.03,0.3,0.03];
ENDMODULE
*
